Standard Gain Horn Antenna

Model: SAS-573

26.5 GHz to 40 GHz

This Standard Gain Horn Antenna will provide reliable, repeatable measurements. An ideal solution and a standard workhorse of any EMC test house for compliance testing.

Features

26.5 GHz to 40 GHz
Individually Calibrated at 1 Meter Horizontal Polarity
FCC, MIL-STD, CISPR and TEMPEST Testing
Rugged Construction
Three Year Warranty

Datasheet Manual

Product Description

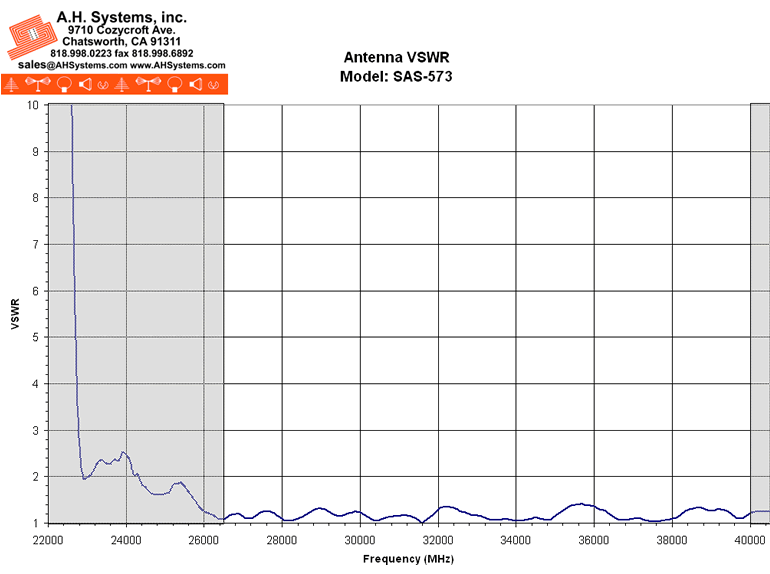

The Standard Gain Horn Antennas are designed specifically for utilization in emissions and immunity testing over the frequency range of 1 to 40 GHz. Each antenna is linearly polarized and has medium gain, low VSWR, and a constant antenna factor. The Standard Gain Horn performance is very precise and predictable through design parameters. Comparisons of measured versus computed antenna factors and gain have been shown to be +/- .5 dB. Therefore, the antenna is considered to be a standard reference, similar to that of a resonant dipole below 1 GHz. The coax-to-waveguide adapter is the only power-limiting component on the antenna and can be removed if high fields are desired. Each Standard Gain Horn comes with a tripod mount that adapts to any tripod with 1/4-20 male threads. Horizontal and vertical polarization is obtained by rotating the antenna on the tripod.

Included parts:

SAS-573 Antenna with attached waveguide to coax adapter and tripod mount
Antenna Calibration Manual

* Calibration data and certificate at 1 meter horizontal polarity included

Shipping Information:
Carton size: 13" x 10" x 5"
Shipping Weight: 2 lbs.
* These are approximate dimensions and will vary depending on other items ordered.

Specifications

Frequency Range:	26.5 GHz - 40 GHz

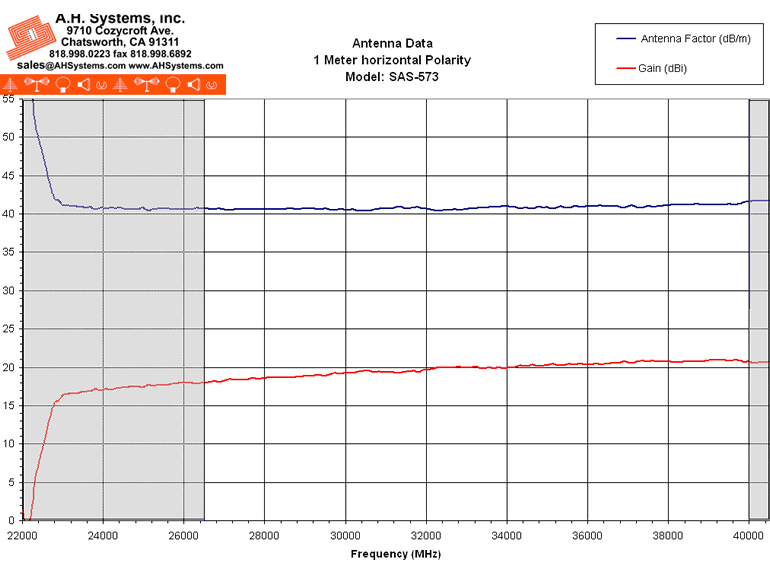

Antenna Factor:	39.8 to 40.5 dB/m
Gain:	18.9 to 21.8 dBi

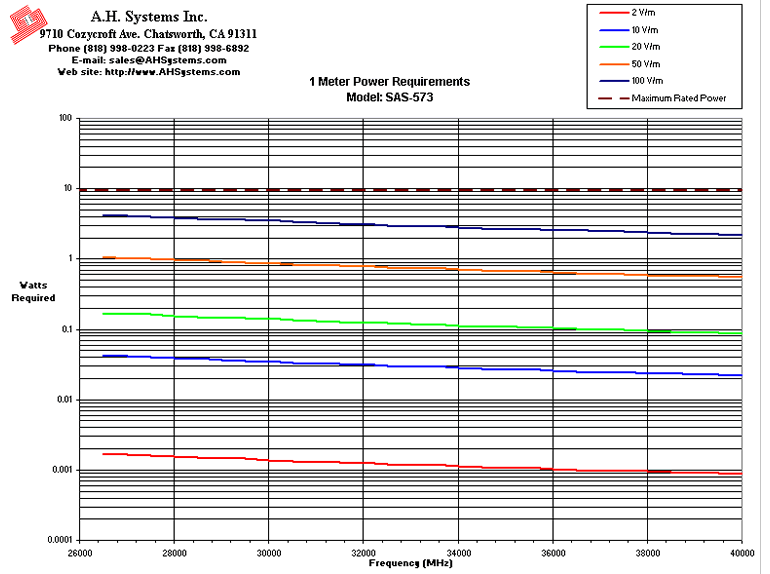

Maximum Continuous Power:	10 Watts
Max Radiated Field:	150 V/m

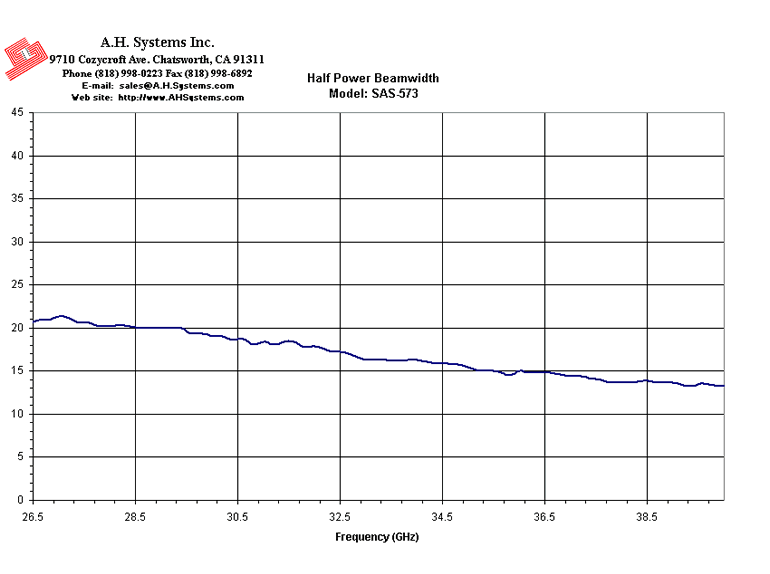

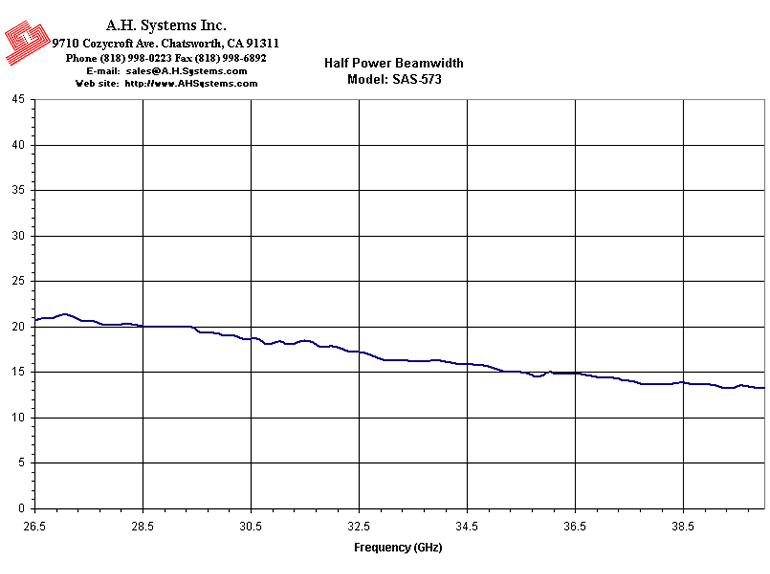

Beamwidth E-plane:	18°
Beamwidth H-plane:	16°
Impedance:	50 ohm
Connector:	WR-28 to 2.9mm female
Mounting Base:	¼ - 20 Thread, female
Physical Dimensions:
Length:	4.1 in. (10.4 cm)
Width:	1.1 in. (2.8 cm)
Height:	1.4 in. (3.6 cm)
Weight:	0.1 lbs. (0.05 kg)
