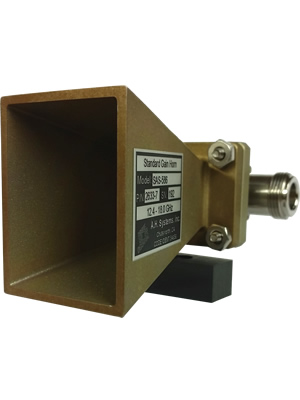

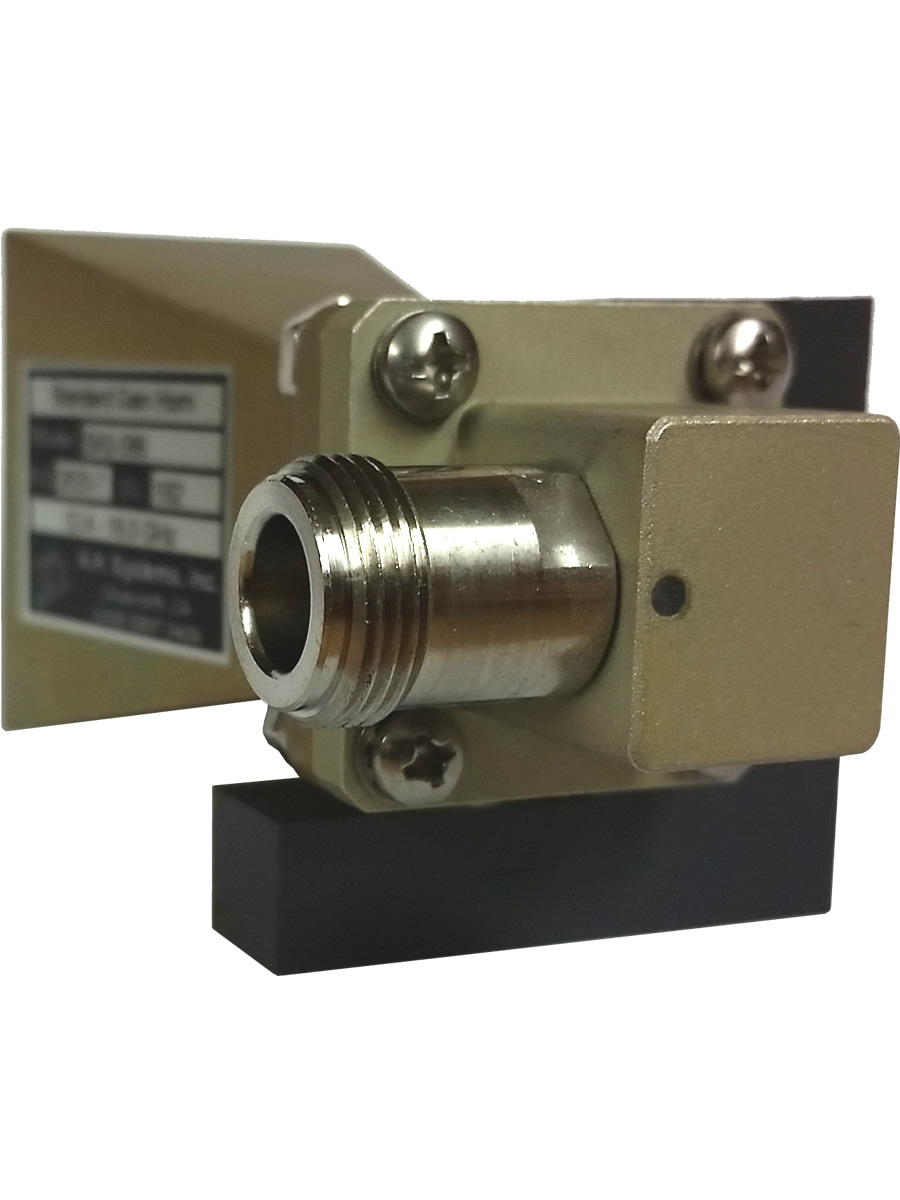

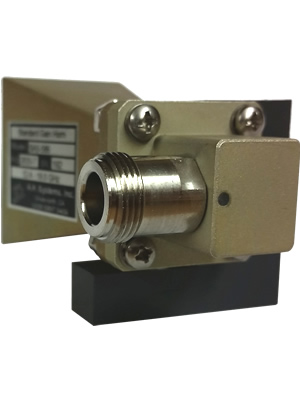

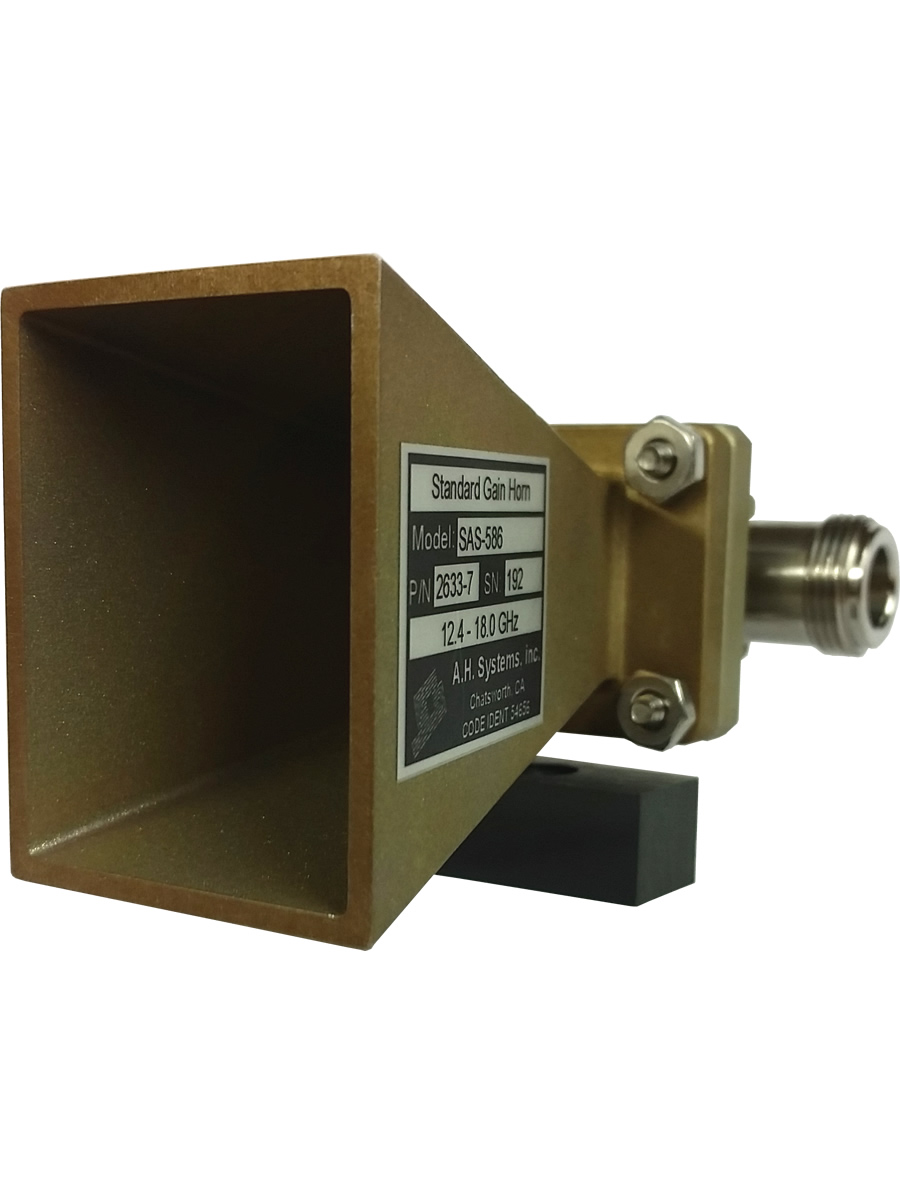

Standard Gain Horn Antenna
Model: SAS-586
12.4 GHz to 18 GHz
This Ku band Standard Gain Horn Antenna will provide reliable, repeatable measurements. An ideal solution and a standard workhorse of any EMC test house for compliance testing.
Features
- 12.4 GHz to 18 GHz
- Individually Calibrated at 1 Meter Horizontal Polarity
- FCC, MIL-STD, CISPR and TEMPEST Testing
- Rugged Construction
- Three Year Warranty
The information provided below is for general informational purposes only and should not be relied upon for any specific purpose.
Plastic Tripod
The ATU-514 is a collapsible tripod is built with all non-metallic materials that will not influence your antenna measurements.
Product Details
Az and El Head
The AEH-510 Azimuth and Elevation head is used to assist the test engineer in pointing the mounted test antenna towards the device under test. This adjustable antenna mount has a rugged 4" mounting surface with a Captive 1/4-20 male thread for mounting all of A.H. Systems and most other compliance measurement antennas.
Product Details
3 Meter Low-Loss Cable
AH Systems assembles high performance microwave cable that utilizes only the very best materials. With plenty of raw stock on hand, we can create a custom length high precision cable assembly within a few days. The outer jacket is a tough, high temperature thermoplastic that can withstand temperatures from -65 to +200 Celsius. All this adds up to a very superior microwave cable product that can meet the most demanding requirements
