N(male) to N(male), RG-214/U MIL-C-17, 50-ohm Coax Assemblies

Model: SAC-211

N(male) to N(male), RG-214/U MIL-C-17, 50-ohm Coax Assembly

up to 11 GHz

Coaxial Cable, RG-214/U, 13 AWG Stranded, double silver-plated copper braid shield (97% coverage), PVC jacket, N-type (male) connectors.

Features

Suitable for CISPR 16-2-1, CISPR 22, CISPR 32, MIL STD-461 and many other compliance standards
Rugged Construction
Three Year Warranty

Desired Length:

Availability currently in stock

The availability information was last updated on 09-Jan-26. This availability is subject to prior sale.

Product Description

Our custom made microwave/RF cable assemblies provide repeatable, reliable performance for use in a variety of commercial and industrial applications. Standard Length for all cables is 3 meters. Longer cables can be ordered (specify -"x" with the length in meters after the model number, e.g. SAC- 210-10 = 10 meters). Simply call or email for more information.

RG-58 is a 50 Ω coaxial RF cable prized for its compact size, flexibility, and dependable low-power performance. It features a stranded copper center conductor, a polyethylene dielectric, and a single-braided copper shield to reduce signal loss and guard against EMI.

Specifications

Frequency Range:	up to 11 GHz
Impedance	50-ohm
Max. Power at 1 GHz	170 watts
Max. Operating Temperature	80 deg C
Jacket Diameter	0.425"
Jacket Material	PVC
No. of Shields	2
Dielectric Type	PE
Center Conductor Type	Stranded
Minimum Bend Radius	1.6 in

Browse Categories

Holiday hours

N(male) to N(male), RG-214/U MIL-C-17, 50-ohm Coax Assembly

Product Description

Specifications

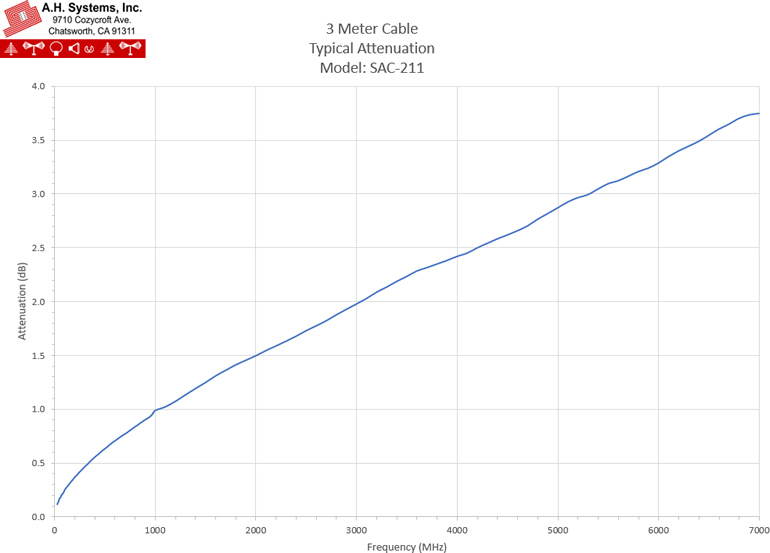

Typical Data
