AEH-511 Metal Azimuth and Elevation Head

Metal Azimuth and Elevation Head

Model: AEH-511

The AEH-511 Azimuth and Elevation head assists test engineers in orientating the compliance antenna towards the EUT.

Features

Standard 1/4-20 mounting threads
Rugged Constructiont
Three Year Warranty

Datasheet

Availability currently in stock

The availability information was last updated on 18-Sep-26. This availability is subject to prior sale.

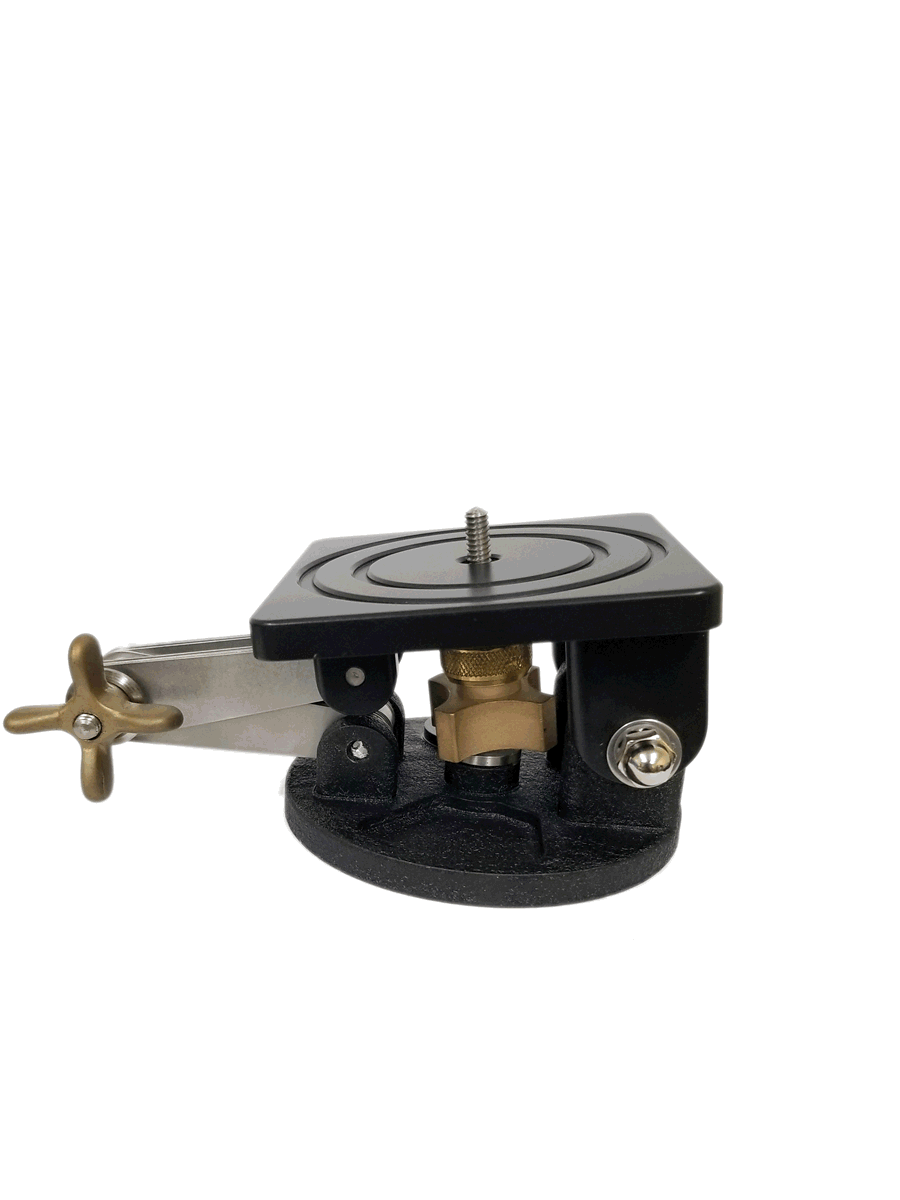

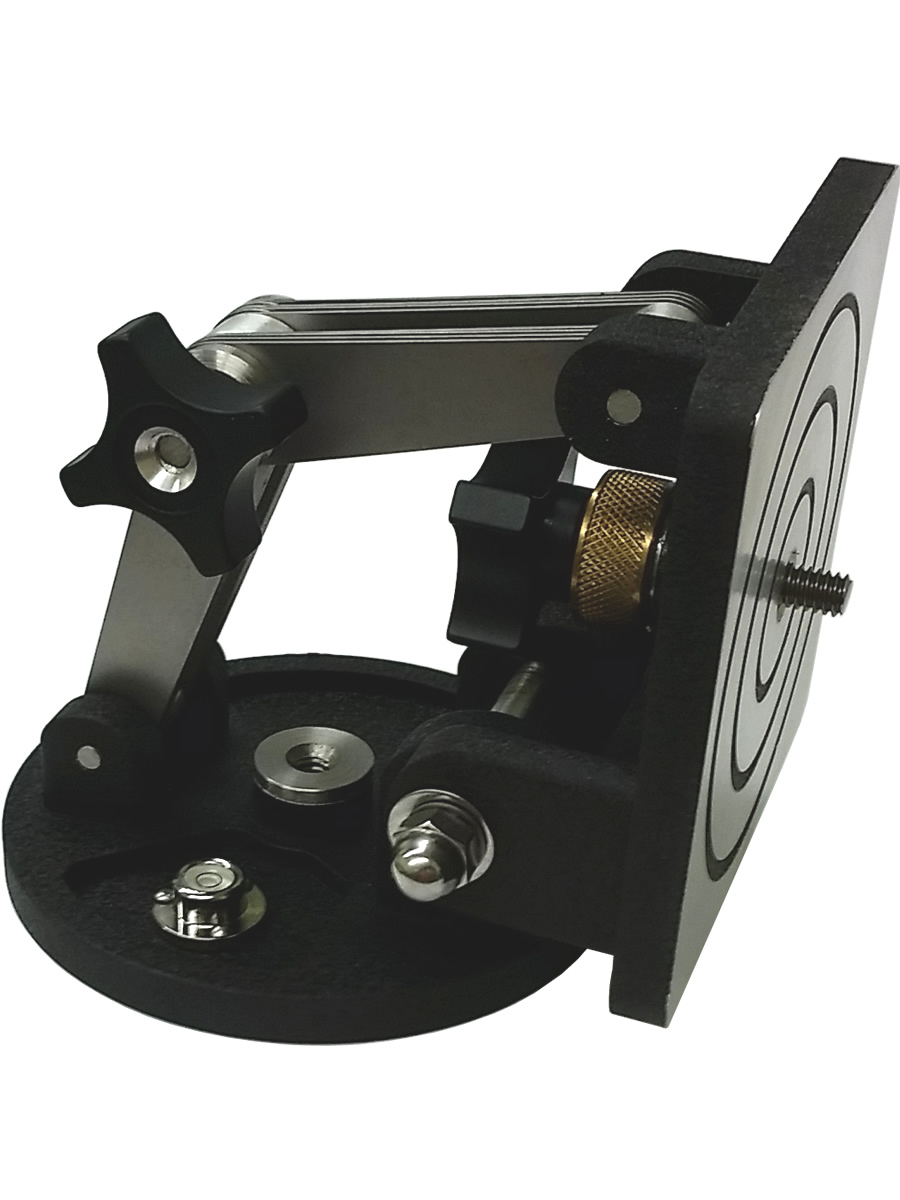

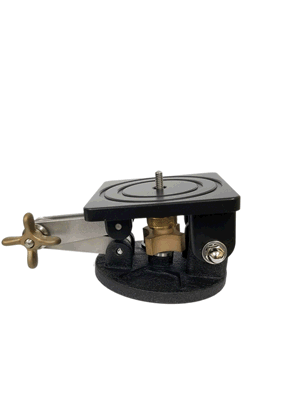

The AEH-511 Azimuth and Elevation head is used to assist the test engineer in pointing the mounted test antenna towards the device under test. This adjustable antenna mount has a rugged 4" mounting surface with a Captive 1/4-20 male thread for mounting all of A.H. Systems and most other compliance measurement antennas.

Specifications

Maximum Load:	26 Pounds / 11.8 kg
Mounting Threads	1/4-20

Dimensions:	3.5" x 3.5" x 3" (9 x 9 x 7.6 cm)
Weight	2.7 lbs. / 1.2 kg

Shipping Information:
Carton size: 12" x 9" x 7"
Shipping Weight: 4 lbs.
* These are approximate dimensions and will vary depending on other items ordered.

Tripod Carrying Case

TCC-510

Tripod carrying case to house and protect any of the tripods and extension legs that we offer.

TCC-510

Product Details

Tripod Extension

BTE-510

The BTE-510 Bilogical Tripod Extension is used to extend the Bilogical series of antennas off of the tripod by approximately 20 inches. This enables mounting the antenna to a tripod and allow both horizontal and vertical compliance testing.

BTE-510

Product Details
