Octave Horn Antenna
Model: SAS-590-11
2 GHz - 4 GHz

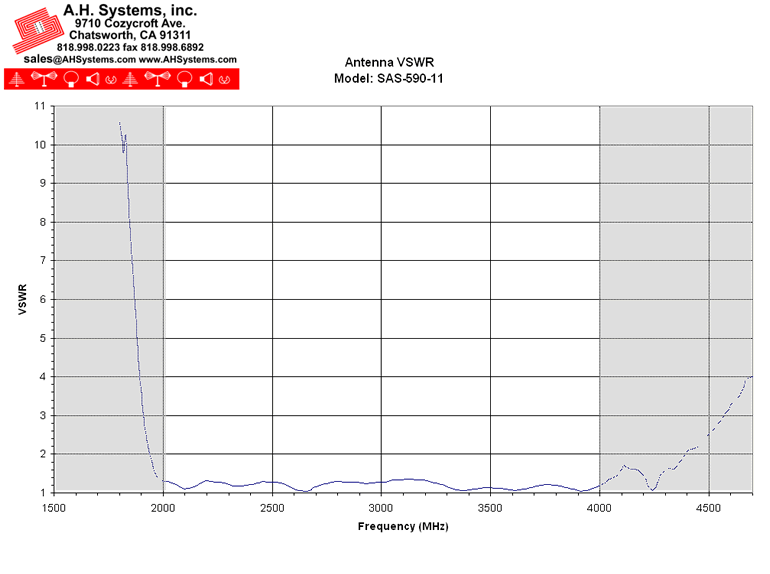

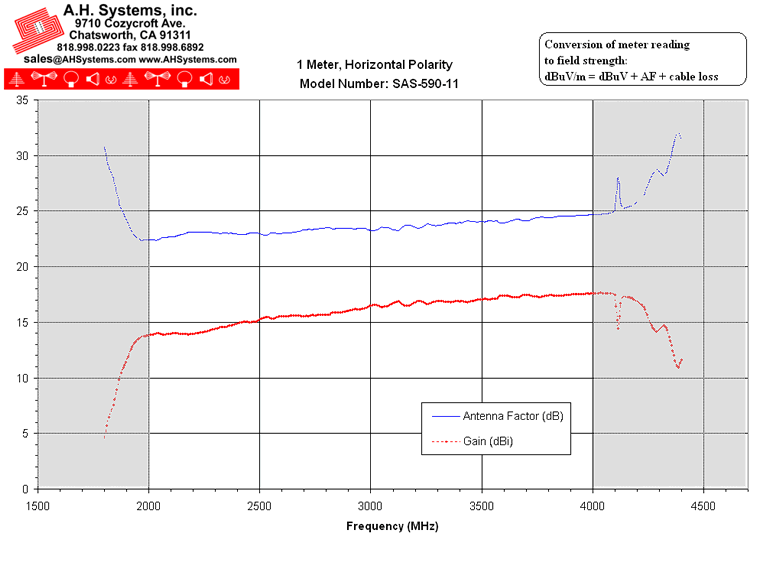

This Octave horn antenna has medium gain and low VSWR; excellent for both immunity and emissions testing.
Features
- 2 GHz - 4 GHz
- Individually Calibrated
- FCC, MIL-STD, CISPR and TEMPEST Testing
- Precision machined, Rugged Construction
- Three Year Warranty
Availability currently in stock
The availability information was last updated on 04-Sep-26. This availability is subject to prior sale.
