Standard Gain Horn Antenna

Model: SAS-581

1.7 GHz to 2.6 GHz

This Standard gain horn antenna has medium gain, low VSWR, and a constant antenna factor; excellent for both immunity and emissions testing.

Features

1.7 GHz to 2.6 GHz
Individually Calibrated at 1 & 3 Meter Horizontal Polarity
FCC, MIL-STD, CISPR and TEMPEST Testing
Rugged Construction
Three Year Warranty

Datasheet Manual

Availability currently in stock

The availability information was last updated on 10-Jul-26. This availability is subject to prior sale.

Product Description

The Standard Gain Horn Antennas are designed specifically for utilization in emissions and immunity testing over the frequency range of 1 to 40 GHz. Each antenna is linearly polarized and has medium gain, low VSWR, and a constant antenna factor. The Standard Gain Horn performance is very precise and predictable through design parameters. Comparisons of measured versus computed antenna factors and gain have been shown to be +/- .5 dB. Therefore, the antenna is considered to be a standard reference, similar to that of a resonant dipole below 1 GHz. The coax-to-waveguide adapter is the only power-limiting component on the antenna and can be removed if high fields are desired. Each Standard Gain Horn comes with a tripod mount that adapts to any tripod with 1/4-20 male threads. Horizontal and vertical polarization is obtained by rotating the antenna on the tripod.

Included parts:

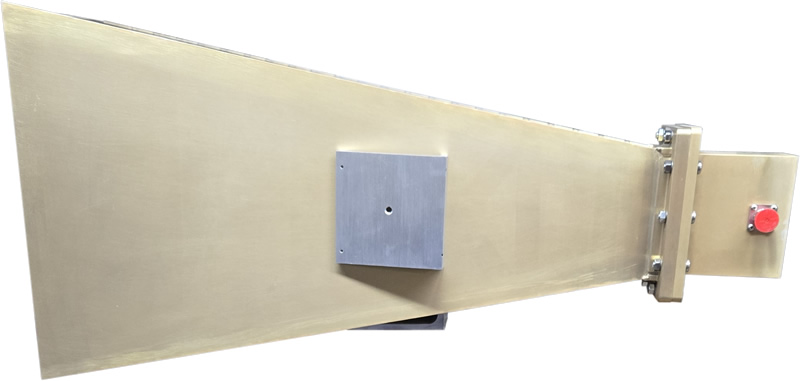

SAS-581 Antenna with attached waveguide to coax adapter and tripod mount
Antenna Calibration Manual

* Calibration data and certificate at 1 and 3 meter horizontal polarity included

Shipping Information:
Carton size: 33" x 12" x 25"
Shipping Weight: 20 lbs.
* These are approximate dimensions and will vary depending on other items ordered.

Specifications

Frequency Range:	1.70 GHz - 2.60 GHz
Antenna Factor:	22.1 dB/m
Gain:	14.5 dBi
Maximum Continuous Power:	500 W
Max Radiated Field:	650 V/m
Beamwidth E-plane:	28°
Beamwidth H-plane:	29°
Impedance:	50 ohm
VSWR:	1.3:1 (1.6:1 max)
Connector:	WR-430 to N-Type female adapter

Physical Dimensions:
Length:	27.0 in. (68.6 cm)
Width:	8.5 in. (21.6 cm)
Height:	11.8 in. (30 cm)
Weight:	10.5 lbs. (4.76 kg)
